Everything You Need to Know about
Kiln-Dried Wood
in a nutshell
Wood has been the bedrock of the furniture and construction industries for centuries. However, freshly felled wood cannot be used to make furniture or in construction. It needs to be processed to bring out the desired properties such as strength, flexibility, and ability to work with adhesives.
Processed Wood Properties
Strength
Flexibility
Adhesive
One of the most common wood drying processes is kiln-drying. Kiln-dried lumber is often used to make furniture as it lasts longer and has relatively high strength. The reason it can last longer is that kiln-dried wood has low moisture content.
Let’s take a closer look at what kiln-dried wood is, the drying process works, and its benefits.
What Is
Kiln-dried Lumber?
Before we answer this question, let’s first understand what a kiln is.
what is a kiln?
A kiln is a furnace or an oven designed for drying and baking materials like clay and wood. With a kiln, you can control temperature, airflow, and humidity levels, resulting in better quality dried lumber.
Representation of a Tunnel Kiln
advantage of a kiln?
The biggest advantage of using a kiln is that it speeds up the process of drying. So, most wood production mills use this oven to bring down the moisture content of the green lumber to the desired level. The purpose of this process is to keep the moisture at a level where it won’t cause further damage. Kiln-drying can help avoid warping and twisting of lumber during furniture making.
UNDERSTANDING
the Kiln-drying Process
Unlike air-drying, kiln-drying takes place in a closed chamber. You can control airflow, temperature, and humidity inside this closed chamber to bring down the moisture level.

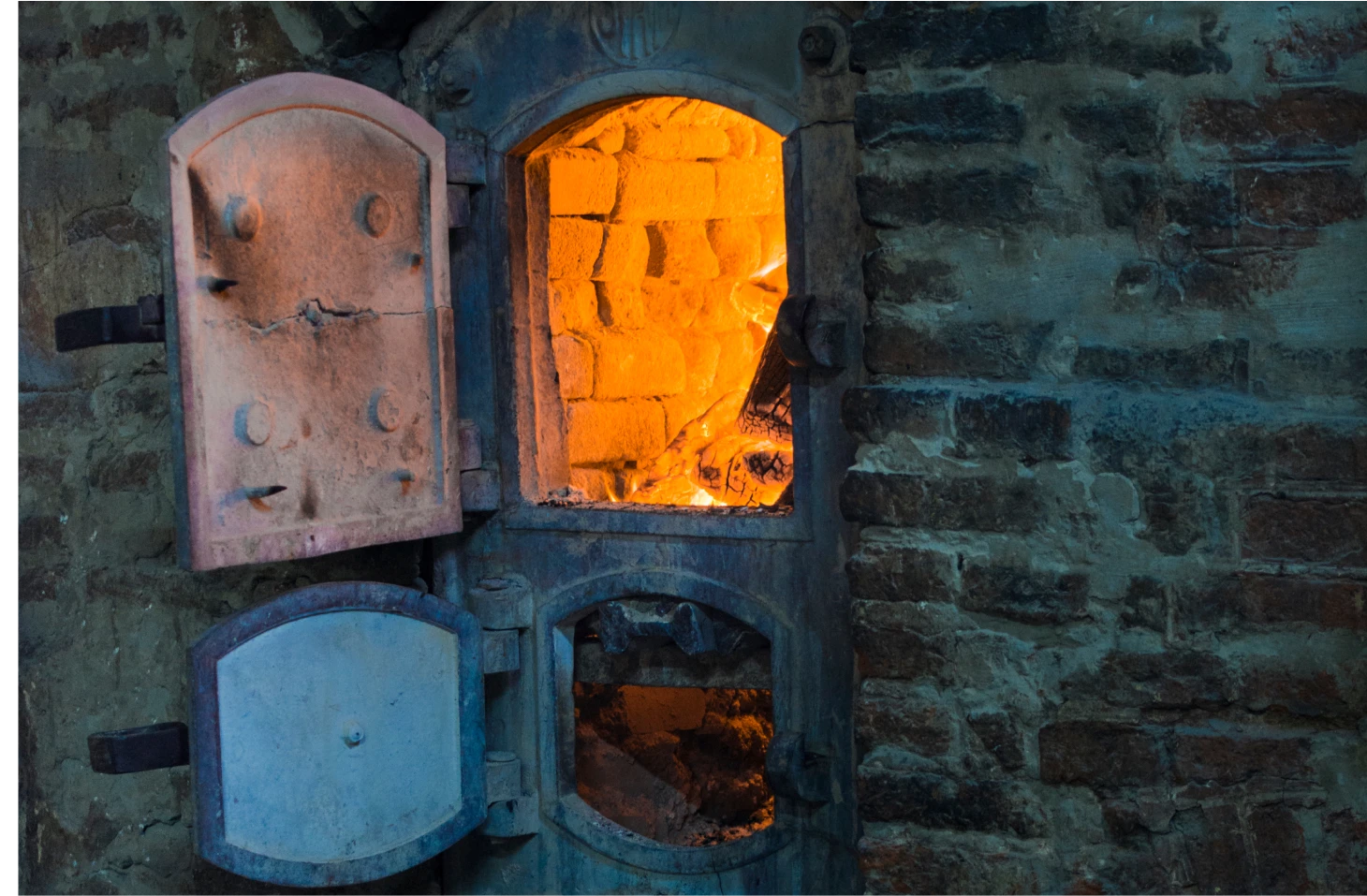

Closed Chamber for Kiln Drying
Primary Goal of
Kiln-drying
The two primary goals of the kiln-drying process
involve moving the moisture to the surface of the timber and letting it into the atmosphere. That’s where the trio of controlled airflow, temperature, and humidity comes in.
The Trio for
The Timber
Airflow
Temperature
Humidity
While the airflow and relative humidity in the kiln helps with the evaporation of the moisture in the timber, increasing temperature speeds up diffusion, which helps to drive moisture to the surface.
Kiln Schedules
The Equilibrium Moisture
Content (EMC)
If you maintain the given temperature, airflow, and humidity, the kiln-drying process takes longer. However, periodically changing these factors can help you reach the Equilibrium Moisture Content (EMC) quickly and efficiently.
Usually, you need anywhere between five to eight kiln schedules to complete the process. However, you may need more cycles depending on the species, moisture content, and size of the timber.
5 to 8
kiln schedules to
complete the process
Kiln Structure
A typical kiln consists of the following
Kiln Chamber
Usually, wood mills use bricks and concrete structures. But, aluminum-built kilns are becoming increasingly popular as they are lightweight.
Heat Supply
The heat can come from various sources such as heating pipes, heat exchangers, or radiators running on fossil fuels, electricity, or renewable energy.
Humidifiers
Humidifier systems use atomized water sprays or perforated pipes to inject steam into the wood.
Fans
Fans, when placed on the roof and in the walls, provide air circulation required to release the moisture into the atmosphere.
Types of Kilns
The three most common types of kilns are Conventional, Dehumidification, and Solar. Let’s know more about them.
Conventional
It comprises steam or hot water coils or a furnace, which acts as the source of heat. The water removed from the wood turns into moisture through evaporation, which is then sucked out by the ventilators or fans. Although this wood drying process offers excellent results, it is highly energy-intensive.
Dehumidification
This kiln-drying process requires the use of a heat pump system to remove water from the wood. As you can recycle the heat used in this process, it is more economical and efficient.
Solar
In a solar kiln, you can use a solar collector to provide the required heat. However, getting kiln-dried logs from this process is unpredictable as it depends on the weather. A cloudy sky means bringing the kiln-drying process to a complete halt.
Before Starting
the Kiln-Drying Process
Before sending the timber to a kiln, it needs to go through the following.
sort
Debark and sort felled trees into logs by species, size, or by end-use.
cut
Cut the logs into timber or lumber as required.

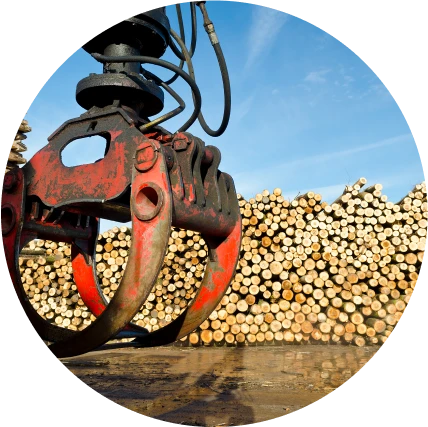

Dimension
Sort the timber by species and dimensions to make the wood-drying process faster
After Finishing
the Kiln-Drying Process
Before the end-users buy kiln-dried wood, it goes through the following
final dimension
Once the wood reaches the correct moisture level, you need to plane it into final dimensions.
SHIP
Sort it depending on the grade and ship it for the desired application.
prevention
Prevent the kiln-dried lumber from absorbing moisture further down the line.
Air-Dried v/s KILN-Dried
lumber

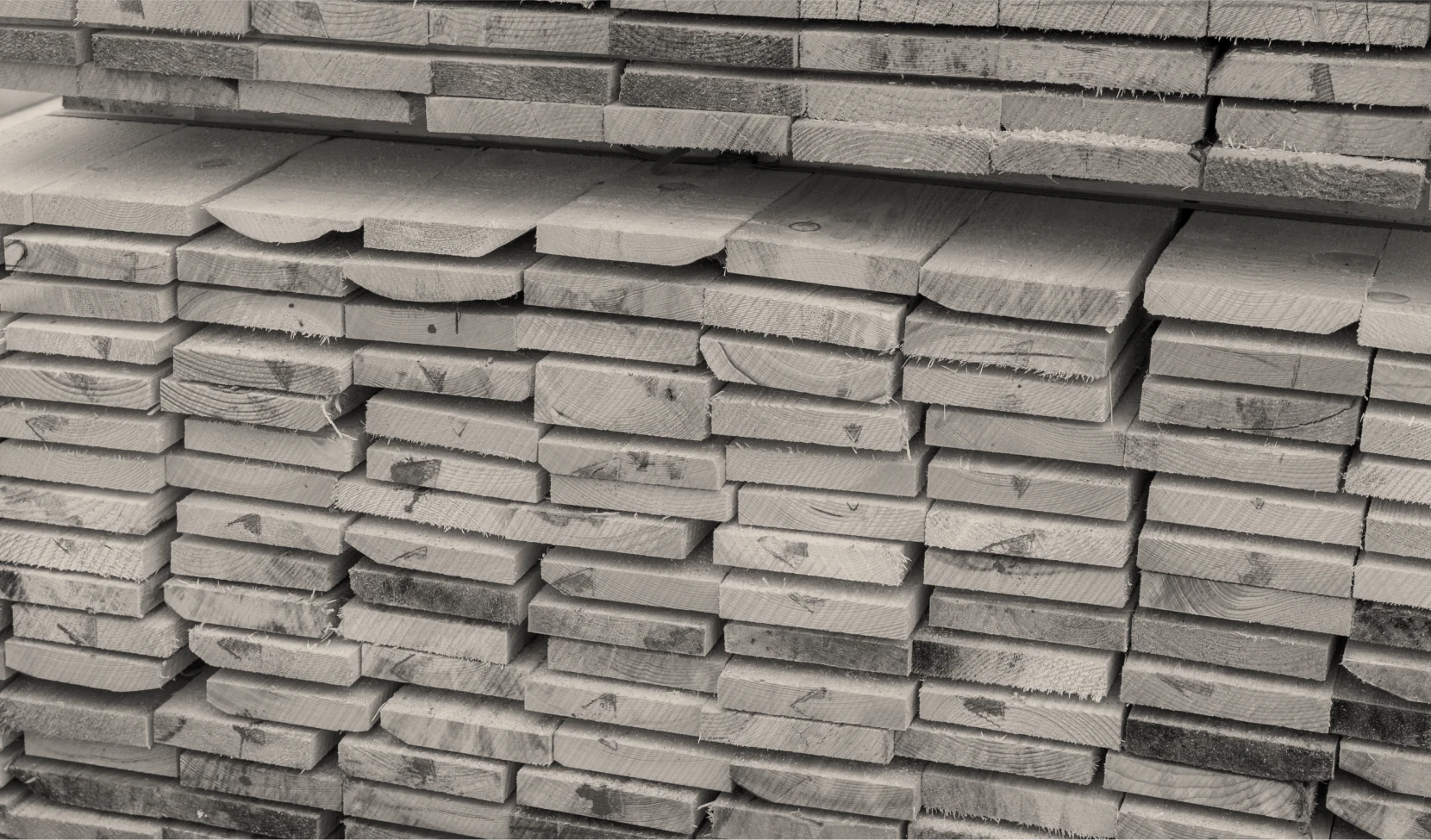

Just like kiln-drying, air-drying is also a well-known wood drying process. In air-drying, you need to stack pieces of lumber with spacers between each. You can put a canopy or timber on the top for protection and let nature take its course.
Both processes come with a few unique benefits and drawbacks of their own.
Air-Dried Lumber
Doesn’t Kill the Insects
Air-drying doesn’t kill any insects, eggs, bug larvae, mold, and fungi in the wood, leaving it vulnerable to a potential infestation
Chemical Treatment
Air-dried lumber may require chemical treatments to increase its lifespan.
Air
During air-drying, resins continue to be liquid and runny.
8-16 Months Process
Air-drying is a natural process that can take up to 8 -16 months, depending on the species of wood.
Solid
This process doesn’t introduce any internal tensions in the wood. So, you can easily work on it using hand tools.
Doesn’t Swell
While air-dried wood may absorb moisture, it doesn’t swell because the cells collapse and compress as the timber air dries.
Not Uniform
Air-dried wood is often moister in the middle compared to the edges as the drying process is not uniform.
KILN-Dried Lumber

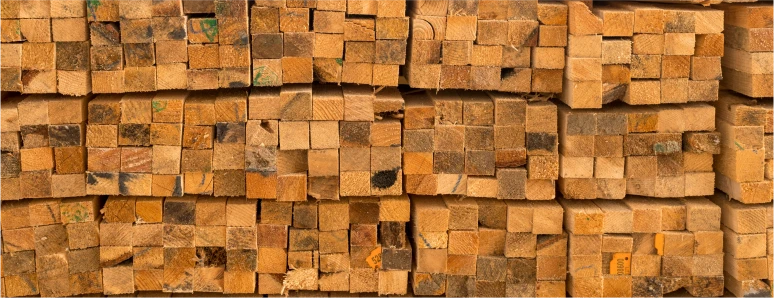

Kills Most of the Insects
As kiln-drying process uses heat (170F), it kills most of the insects, eggs, bug larvae, mold, and fungi. So, kiln-dried logs and furniture can last relatively longer.
No Chemical Treatment
Kiln-dried lumber doesn’t require any harsh chemical treatments as the heat effectively sanitizes it.
Heat
The heat in the kiln dries off the resins in softwoods.
6-8 Weeks Process
Kiln-drying, on the other hand, usually takes 6 – 8 weeks.
Fragile
Kiln-drying, however, can cause the wood to shrink. That, in turn, makes the wood fragile, breaking it off when using hand tools.
Does Swell
After coming out of a kiln, the dried lumber needs to be kept in a controlled climate. When exposed, it starts absorbing moisture and may start swelling.
Uniform
Kiln-dried wood dries uniformly in a closed chamber.

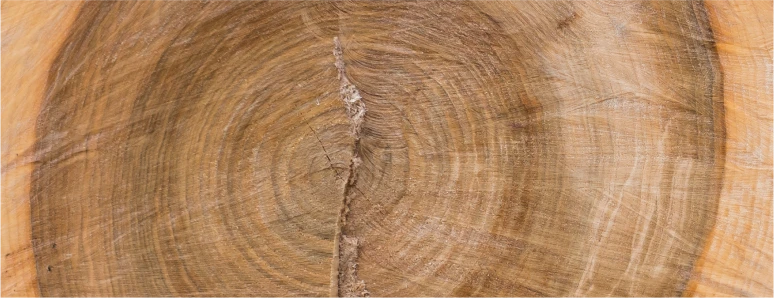

Benefits
of Kiln-dried
Wood
The primary goal of this process is drying wood for furniture. Furniture made from kiln-dried wood comes with the following benefits
Owing to these qualities, most US-based furniture makers like us use kiln-dried wood for furniture making.
WRAPPING UP
Kiln-Dried Wood Furniture
Whether or not you want to buy kiln-dried wood furniture is a matter of personal choice. It does offer a few unique benefits. You can use it for making various items, including furniture, cabinets, and flooring.
If you decide to buy kiln-dried wood furniture, hopefully, you can make an informed decision after reading this post. Do let us know if you have any doubts or questions about kiln-dried lumber in the comments section.
